Heat weld sealing preheating time 30 s
Electrical supply Single phase AC 230 V / 50 Hz, 1PNE and 115 V / 60 Hz, 1PNE Tolerance -15%/+20% Mains fuse 10 AT
Performance at 225VAC
| Modus Sleep | Modus Stand-by | Modus Oper. Max | |
| Watt | 26 W | 63 W | 446 W |
| Volt Ampere | 38 VA | 64 VA | 451 VA |
| Reactive Power | 27 VAR | 9 VAR | 94 VAR |
| Power Factor | PF 0,60 | PF 0,88 | PF 0,98 |
| COS Phi | 0,69 | 0,99 | 0,99 |
| Ampere | 0,19 A | 0,32 | 2,3 A |
Room temperature 5 - 40°C (41 - 104°F)
Relative humidity 10 - 85%
Cycles per minute up to* (without conveyor) 70/min.

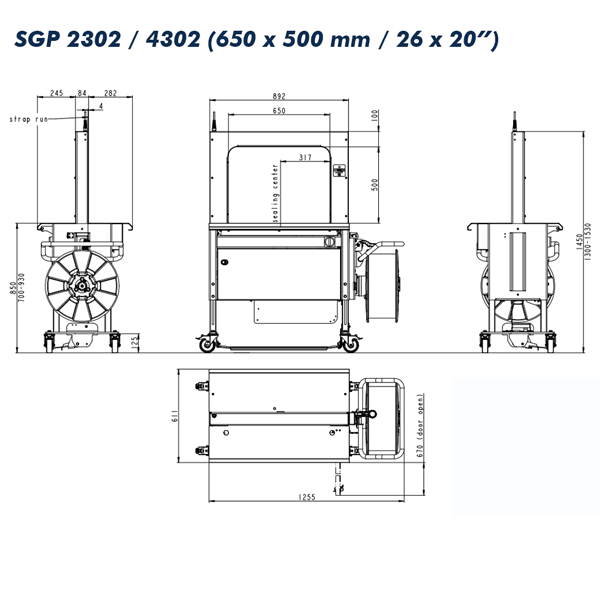

Working Heights see layout
Machine Weight 170 kg (375 lbs)
Material stainless steel
IP- Protection level without IP protection
Packages
| Width x height min | 100 x 20 mm | (4 x 0,8") |
| Width / height max., | ./.50 mm | (./.2") |
| Arch Dimension | ||
| Length Min. | -- | -- |
| Weight Max. | 35 kg | (77 lbs) |
Plastic Strap (PP)
| Strap width | 5mm | (1/4") |
| 9 mm | (3/8") | |
| 12 mm | (1/2") | |
| Strap thickness | 0,40 - 0,60 mm | (0,015 - 0,024") |
| Strap coil, Ø inside/outside | 200 / 430 mm | (8/17") |
| 5 mm (1/4") | 300 N | |
| 9 - 12 mm (3/8 / 1/2") | 450 N |
The polypropylene straps used for the respective applications must correspond with the strap specifications recommended by Signode! *Performance: Depends on arch and package dimensions, conveyor speed, package distances and strap tension.
Arch Dimension
| Machines | Strap Width | Arch Dimension (wxh) | Strap Tension |
| SGP 2302 / 4302 | 5 mm (1/4") | 650 x 500 (26 x 20") | 300 N |
| 5 mm (1/4") | 850 x 650 mm (22 x 26") | 300 N | |
| 9 / 12 mm (3/8 / 1/2") | 650 x 500 (26 x 20") | 300 N | |
| 9 / 12 mm (3/8 / 1/2") | 850 x 650 (33 x 26") | 450 N |
■ Adjustable working height
■ Four castors, two of with brakes
■ Closed strap arch system
■ Heat seal
■ Automatic strap threading device
■ Automatic strap end ejection
■ Food pedal
■ Control panel with digital display
■ Strap loop ejection for cycles without product
■ Cycle counter
■ Electrical supply cable, 5 m
■ Dispenser position: Side mounted
■ Error message display
■ Strap tension key «Soft»

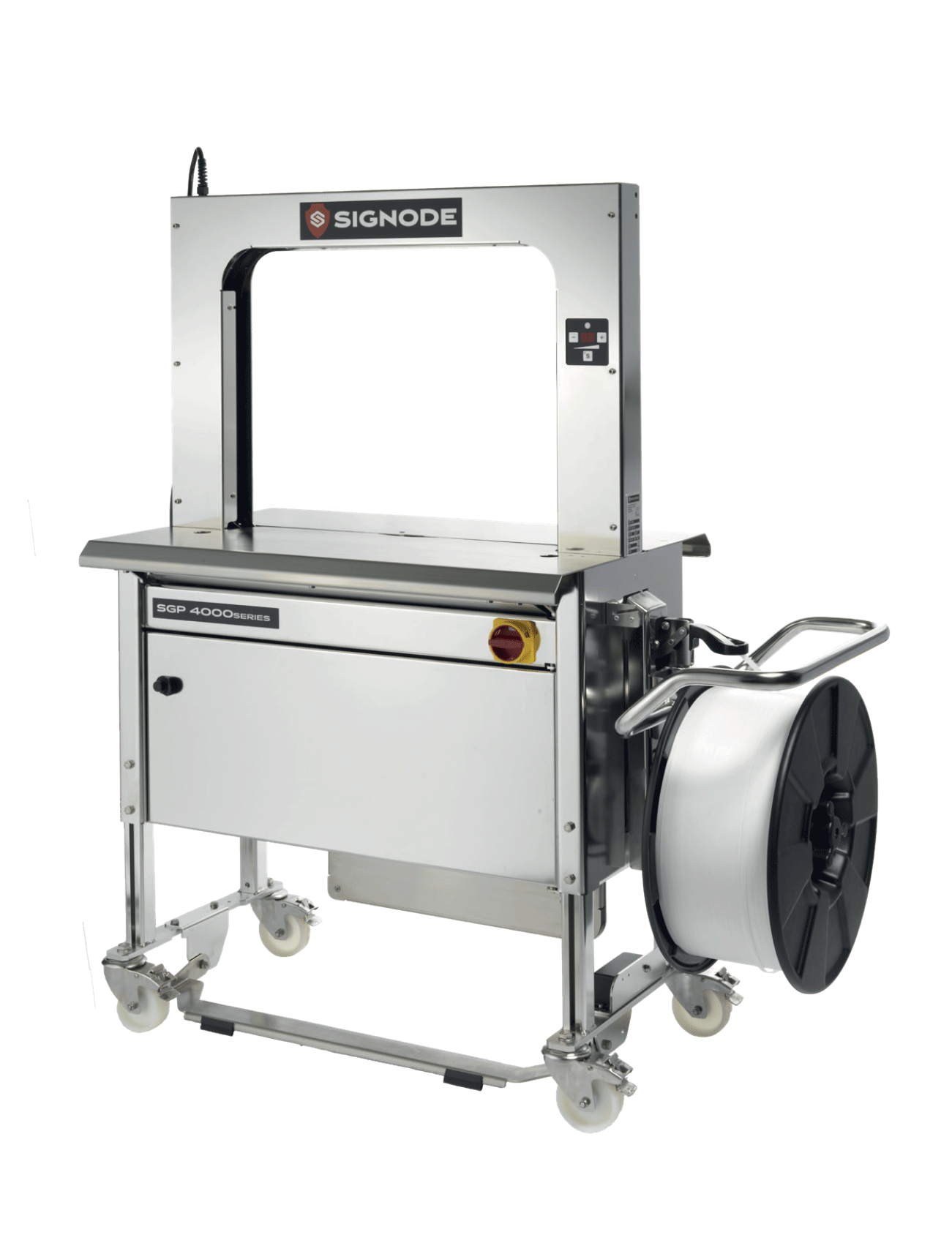

SGP 2302 / 4302
