SGP 4432 / 4433 Specifications
Heat weld sealing preheating time 30 s
Electrical supply Single phase AC 230 V / 50 Hz, 1PNE and 115 V / 60 Hz, 1PNE Tolerance -15%/+20% Mains fuse 10 AT
Performance at 225VAC
|
Modus Sleep |
Modus Stand-by |
Modus Oper. Max |
Watt |
50 W |
70 W |
607 W |
Volt Ampere |
53 VA |
78 VA |
622 VA |
Reactive Power |
19 VAR |
33 VAR |
193 VAR |
Power Factor |
PF 0,61 |
PF 0,82 |
PF 0,98 |
COS Phi |
0,94 |
0,91 |
0,99 |
Ampere |
0,28 A |
0,38 A |
3,0 A |
Room temperature 5 - 40°C (41 - 104°F)
Relative humidity 10 - 85%
Cycles per minute up to* (without conveyor) 70/min.
Working Heights see layout
Conveyor driven conveyor belt
Conveyor speed, stepless 5 – 45 m (5,5 – 50 yd)
Machine Weight 280 kg (617 lbs)
Material stainless steel
IP- Protection level IP 56 / DIN 60529 + IPX9K / ISO 20653
Packages |
SGP 4432 |
SGP 4433 |
Width x height min. |
150 x 100 mm (6 x 4") |
150 x 60 mm (6 x 2,5") |
Width / height max |
550 x 495 mm (22 x 19,5") |
550 x 495 mm (22 x 19,5") |
Arch Dimension |
|
|
Length min |
250 mm (10") |
250 mm (10") |
Weight max |
35 kg (77lbs) |
35 kg (77lbs) |
Plastic Strap (PP)
Strap Width |
9 mm |
(3/8") |
|
12 mm |
(1/2") |
Strap thickness |
0,40 - 0,60 mm |
(0,015 - 0,024") |
Strap coil, Ø inside/outside |
200 / 430 mm |
(8/17") |
Strap tension manual mode |
450 N |
|
Strap tension automatic mode |
600 N |
|
The polypropylene straps used for the respective applications must correspond with the strap specifications recommended by Signode! *Performance: Depends on arch and package dimensions, conveyor speed, package distances and strap tension.

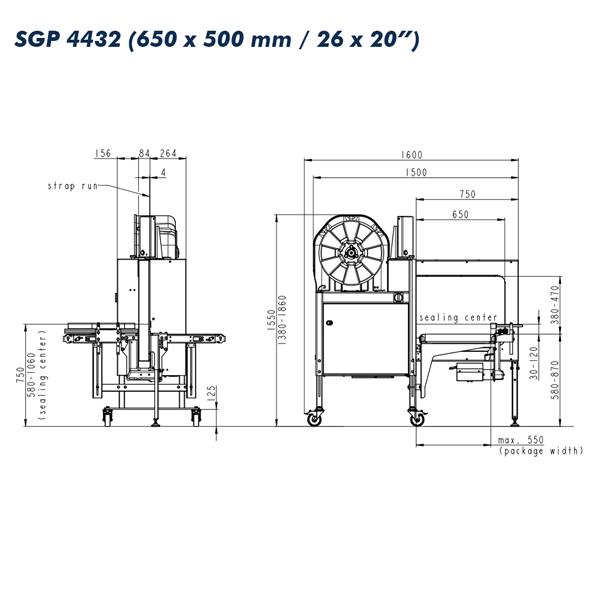

Arch dimension
Machines |
Strap Width |
Arch Dimension (wxh) |
Strap Tension |
SGP 4432 |
9 / 12 mm (3/8 / 1/2") |
650 x 500 mm (26 x 20") |
450 N |
SGP 4433 |
9 / 12 mm (3/8 / 1/2") |
650 x 600 mm (26 x 24") |
450 N |
SGP 4432 / 4433 Features
■ Adjustable seal height
■ Height-adjustable belt conveyor system
■ Four castors with brakes
■ Closed strap arch system
■ Heat seal
■ Automatic strap threading
■ Automatic strap end ejection
■ Strap loop ejection for cycles without product (SGP 4432)
■ Small pressure plate (SGP 4433)
■ Cycle counter
■ Electronic control system with microprocessor + Siemens S7-1200 PLC, free memory capacity for peripheral modules
■ Machine-stop button
■ Dispenser, fitted on top side of machine
■ Protection hood for dispenser
■ Electrical supply cable, 5 m / 5,5 yd.
■ Basic photocell for detecting and positioning the packages
■ Adjustable side guides
■ Operation / Indication
■ Swivelable control panel
■ Graphic display for program selection and strap spacing
■ Error message display
■ Interface
■ 24 pin Harting connector
■ Output signals (potential free)
■ Ready signal to feed conveyor
■ General fault signal
■ Input signal (potential free)
■ Ready signal from follow-on conveyor
